LHF Gantry CMM – WENZEL UK
An exceptionally robust, floor-level gantry CMM tailored for precision inspection of large, complex workpieces. Ideal for UK manufacturing environments—ranging from aerospace frames to maritime propulsion systems—offering a generous measuring envelope with effortless accessibility.
Why UK Manufacturers Choose the LHF Gantry CMM
Ground-level, gantry-style design
Designed without an elevated base, the LHF enables easy loading and operation at floor level—perfect for heavy or awkward components up to 12 m in Y-axis length WENZELAir-bearing guide precision
All axes glide on hydrostatic air bearings across granite guideways, ensuring frictionless motion and long-term measurement integrityDynamic double‑drive Y‑axis
Twin Y-axis drives deliver outstanding acceleration and speed, maintaining rigidity even under heavy inertial loadsYouTube+7WENZEL America+7DirectIndustry+7.Temperature compensation available
Optional automatic thermal correction for both the machine and workpiece addresses UK workshop temperature fluctuationsVersatile sensor compatibility
Supports a wide variety of Renishaw systems, including tactile PH10/PH20 heads, SP25/SP80 scanning probes, REVO 5-axis, and optical options like SHAPETRACERDirectIndustry
Key Advantages of Gantry CMM
Massive capacity & accessibility — perfect for loading bulky parts with minimal tooling
Built-in stability — granite beams plus air bearings mean high precision out of the box

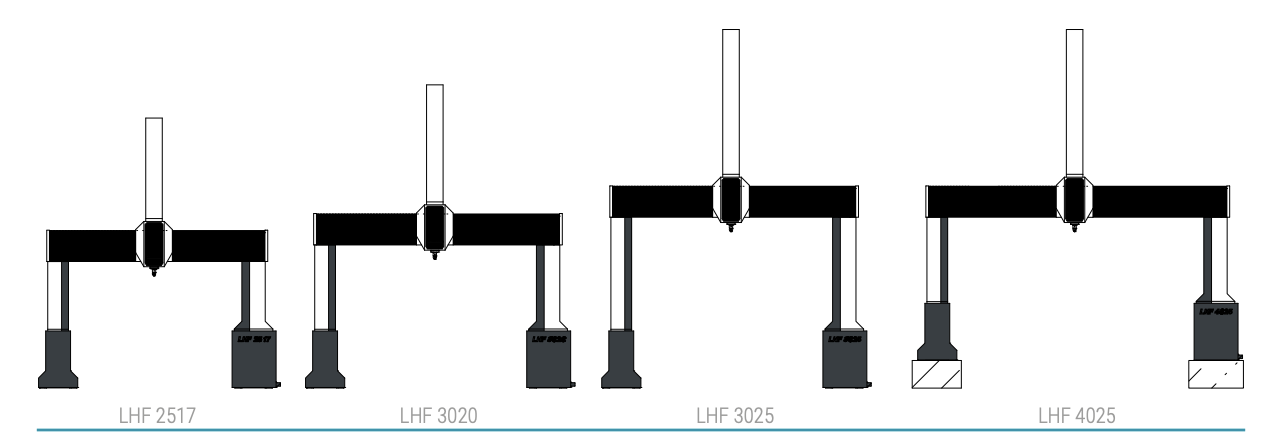

Scalable to your needs — modular lengths, accuracy classes (Standard, Premium, Premium‑Select), plus thermal compensation
Modular sensor upgrades — easily switch between tactile, scanning, optical and 5-axis options
Cost-effective operation — low air consumption, affordable spare parts, and reduced recalibration cycleswillrich.com+5WENZEL America+5simwork.com.my+5
Talk to Our Specialists
Contact our team today to discuss dimensions, accuracy requirements or to request a personalised quote.
